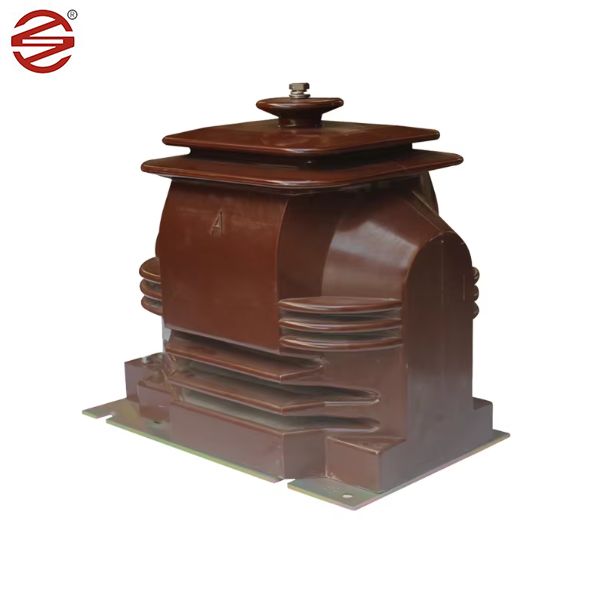

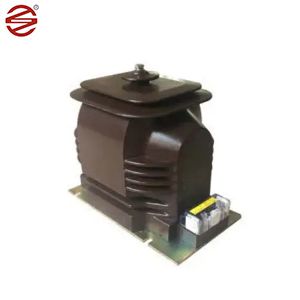

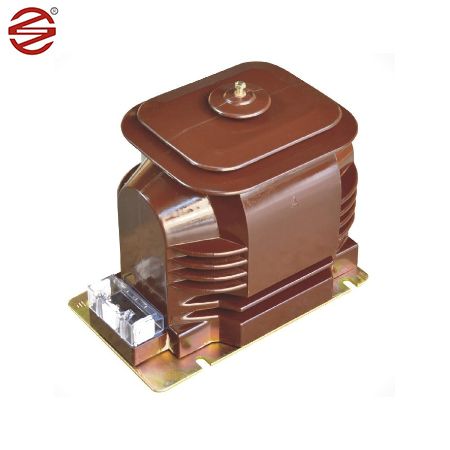

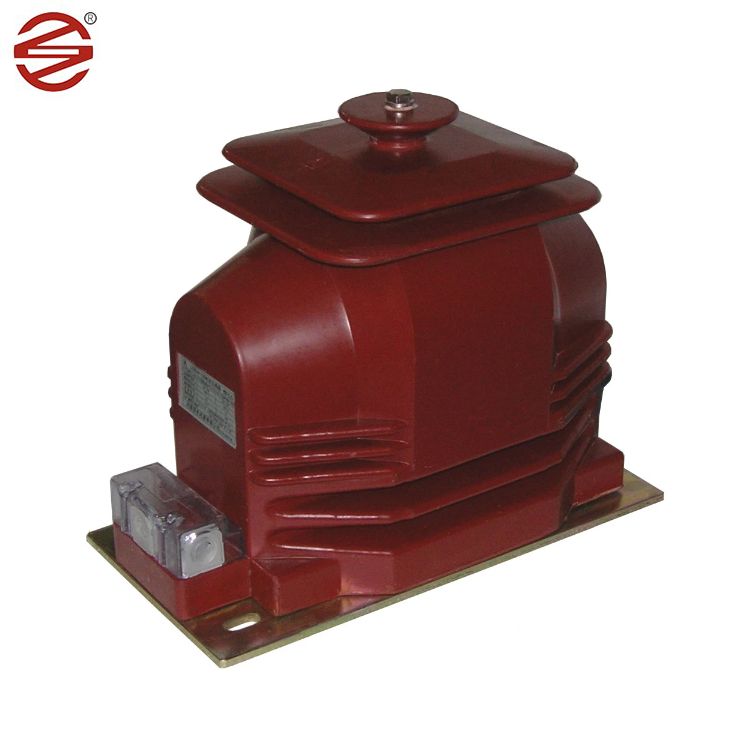

20kV Voltage Transformer

The 20kV voltage transformer manufactured by DAHU ELECTRIC stands out as an indispensable component within indoor switch cabinets, playing a pivotal role in modern electrical systems. Its multifaceted functionalities extend far beyond mere current measurement, encompassing vital tasks such as electrical energy monitoring and the seamless operation of protective relays across both single-phase and three-phase AC systems. Beyond its functional prowess, the 20kV voltage transformer from DAHU ELECTRIC exemplifies a commitment to quality and innovation. Its advanced features, coupled with rigorous testing and compliance with industry standards, instill confidence in its performance and reliability.

Send Inquiry

Product Description

Cold-Rolled Silicon Steel Sheets: 20kV voltage transformer usually uses cold-rolled silicon steel sheets as its core. These materials are cold-rolled and have excellent magnetic properties, such as high permeability and low core loss, which makes them ideal for current transformers. By using cold rolled silicon steel sheet as the core material, the current transformer can achieve efficient energy transfer, thereby improving the efficiency of the system. Compared to other materials, cold-rolled silicon steel sheets have lower hysteresis loops and magnetization losses, which means less energy waste and lower power consumption.

Epoxy resin: Epoxy resin has excellent dielectric properties and mechanical strength, is the first choice of 20kV voltage transformer insulation material. Epoxy castings provide reliable insulation that protects internal components from electrical breakdown and environmental factors..

Copper : Copper conductors are typically used for windings in 20kV voltage transformer. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.

Material (Epoxy Resin ): 20kV voltage transformer use enclosures made of epoxy resin, which has excellent insulation properties and can prevent current or voltage crossing for safe circuit operation. It is also resistant to high temperatures and corrosion, and has good sealing performance for waterproof and moisture-proof capabilities. Epoxy transformers are lighter and easier to install and maintain compared to oil-immersed transformers.
