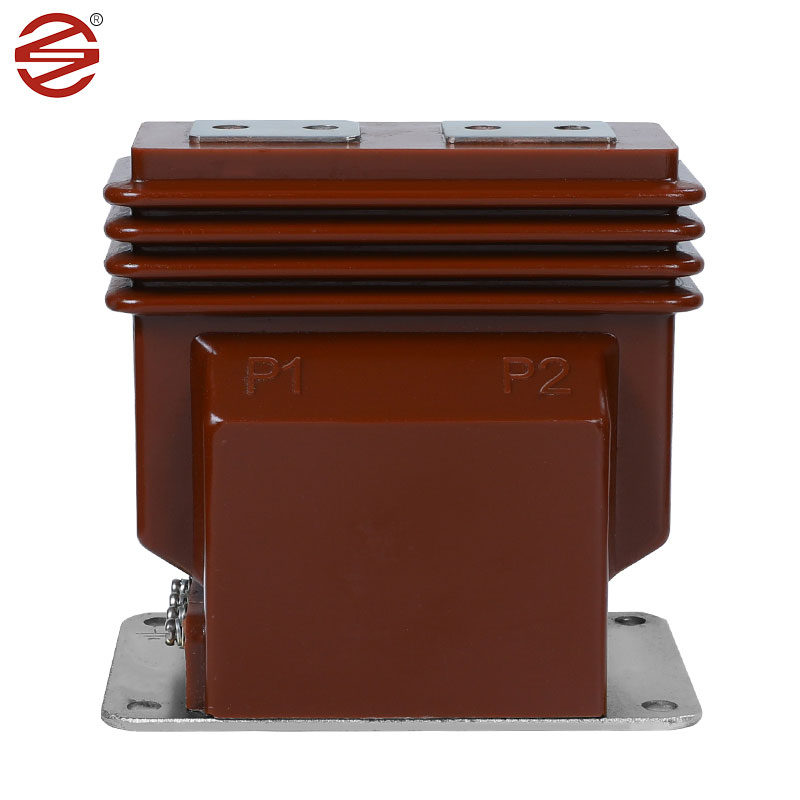

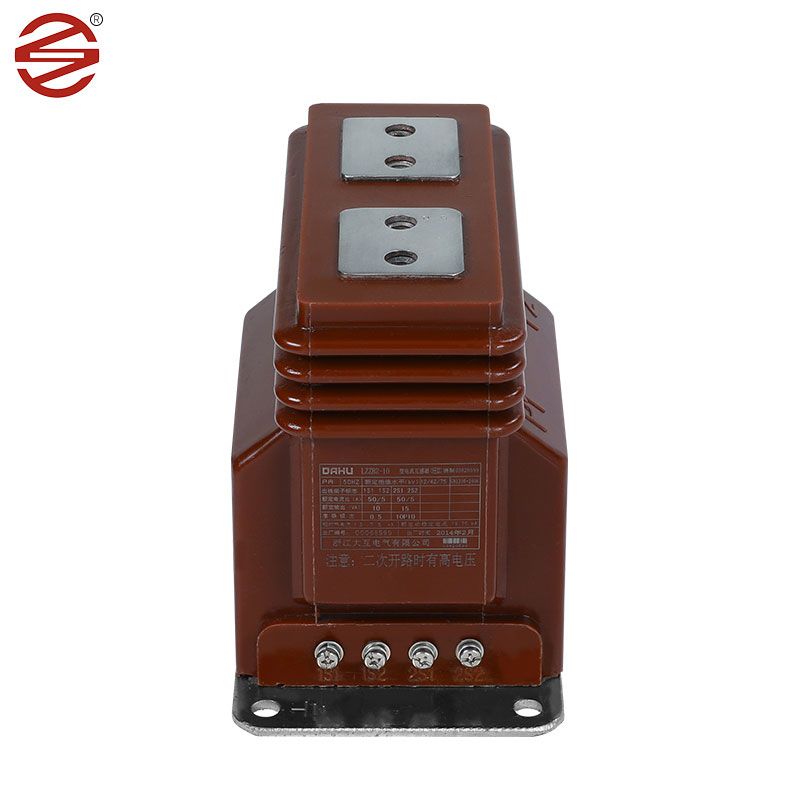

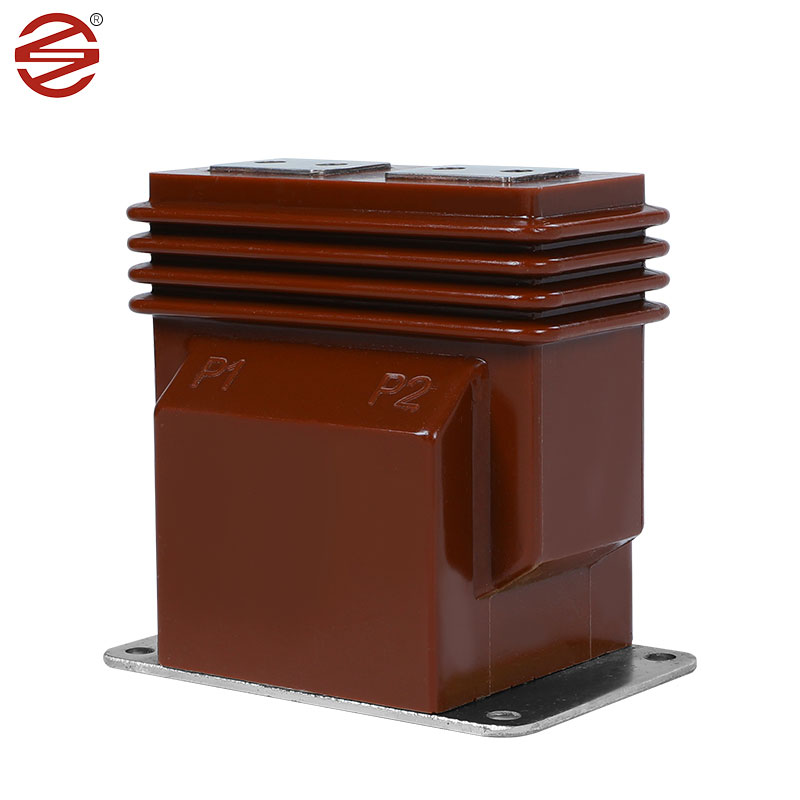

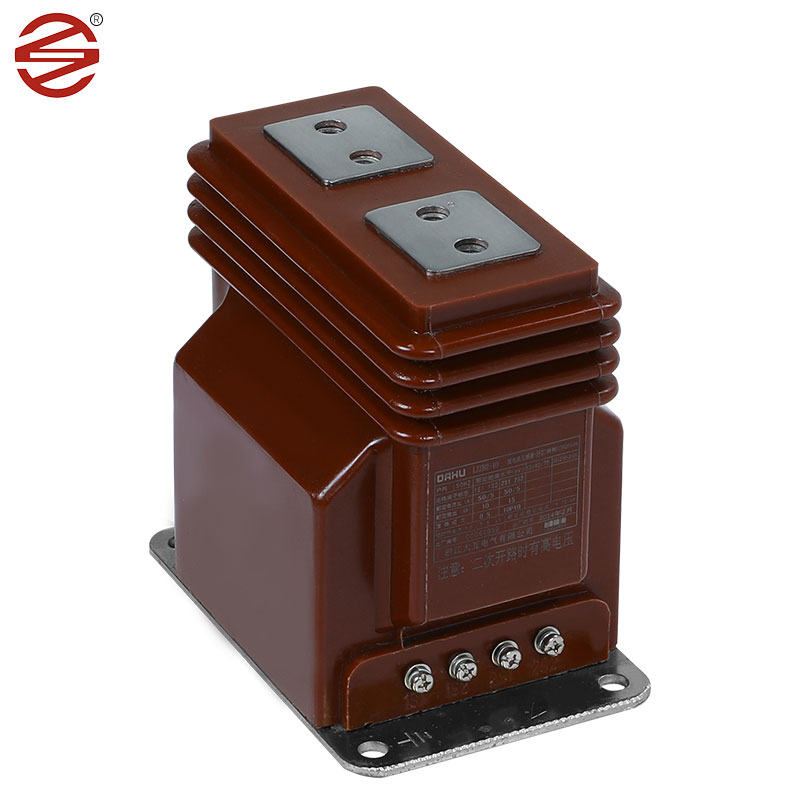

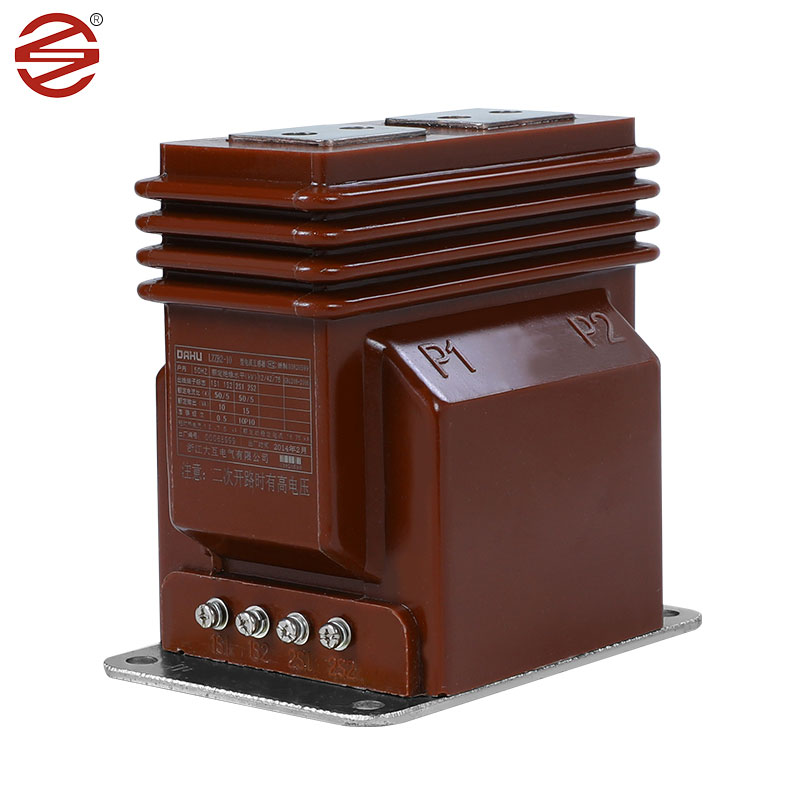

Electric 10kv Current Transformer

Electric 10kv Current Transformer play pivotal roles within indoor switch cabinets, offering robust solutions for current measurement, electric energy monitoring, and protective relaying in both single-phase and three-phase AC systems. These systems operate seamlessly at frequencies of either 50Hz or 60Hz, catering to a wide range of electrical needs with equipment voltages reaching up to 12kV.

Send Inquiry

Product Description

Cold-Rolled Silicon Steel Sheets: 10kV current transformers commonly utilize cold-rolled silicon steel sheets for their core. These materials possess excellent magnetic properties, such as high permeability and low core loss, ensuring efficient energy transfer and minimal power dissipation.

Epoxy Resin: Epoxy resin is a preferred insulating material for 10kV current transformers due to its superior dielectric properties and mechanical strength.Epoxy resin casting provides reliable insulation, protecting internal components from electrical breakdown and environmental factors.

Copper : Copper conductors are typically used for windings in 10kV current transformers. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.

Material (Epoxy Resin ): 10kV current transformers are housed in enclosures made of epoxy resin. Epoxy resin has excellent insulation properties, can effectively prevent current or voltage crossing, to ensure the safe operation of the circuit.It has high temperature resistance and can adapt to the working requirements in high temperature environment.

It has good corrosion resistance, can resist the erosion of some chemical substances, and extend the service life of the transformer.It has good sealing performance, so the epoxy transformer usually has good waterproof and moisture-proof performance and is suitable for use in humid environments.Compared to traditional oil-immersed transformers, epoxy transformers generally have a lighter weight and are easy to install and maintain.

Electric 10kv Current Transformer Parameter

1.	Application	Metering
2.	Installation	Indoor.
3.	Construction	Dry type Epoxy Resin Cast
4.	Insulation	Cast Resin
5.	Number of Phase	Single
6.	Rated Frequency	50Hz
7.	System Primary Rated Voltage	50Hz
7.	System Primary Rated Voltage	11 kV Phase to Phase
8.	Maximum System Voltage	12kV Phase to Phase
9.	System Earthing	Effectively earthed
10.	Basic Insulation Level(1.2/50μ sec.)	75KV
11.	Power Frequency Withstand Voltage (1 min.50 Hz).	28 KV
12. 13.	Ratio: 11kV Feeder Primary	10-20/5A Sinle Winding
14.	Secondary	Single Winding
15.	Accuracy Class	0.2/0.2S for Measurement
16.	Burden: a) for Measurement	7.5-10 VA
17.	Short Time Current Rating	Minimum 10 kA for 1 Sec.
18.	Extended Current Rating	120% of Rated Current
19.	Over Current Rating	<10A
20.	Creepage Distance	25 mm/KV(minimum)
21.	Standard	Design,Manufacture,Testing,Installation and Performance shall be in accordance to the latest editions of IEC 61869-1 & IEC 61869-2.
